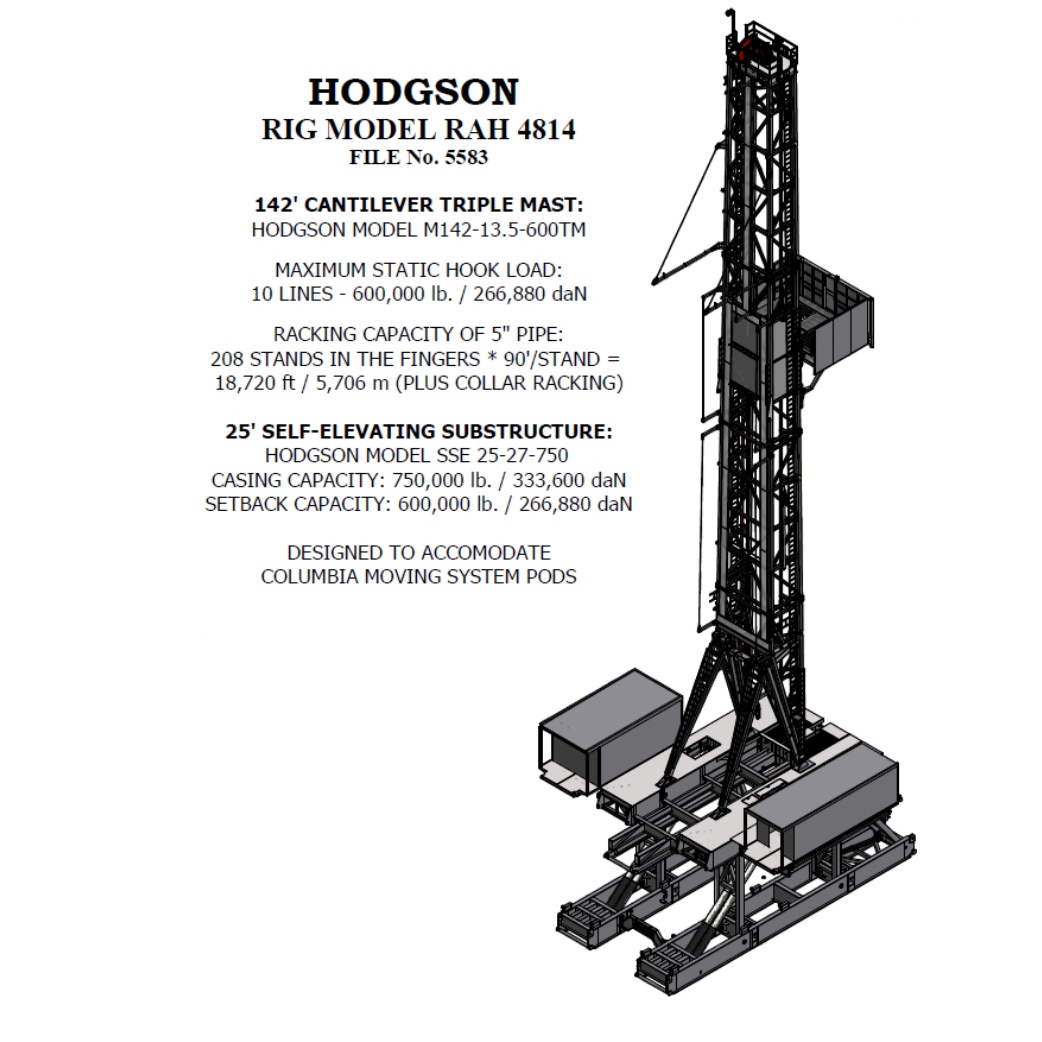

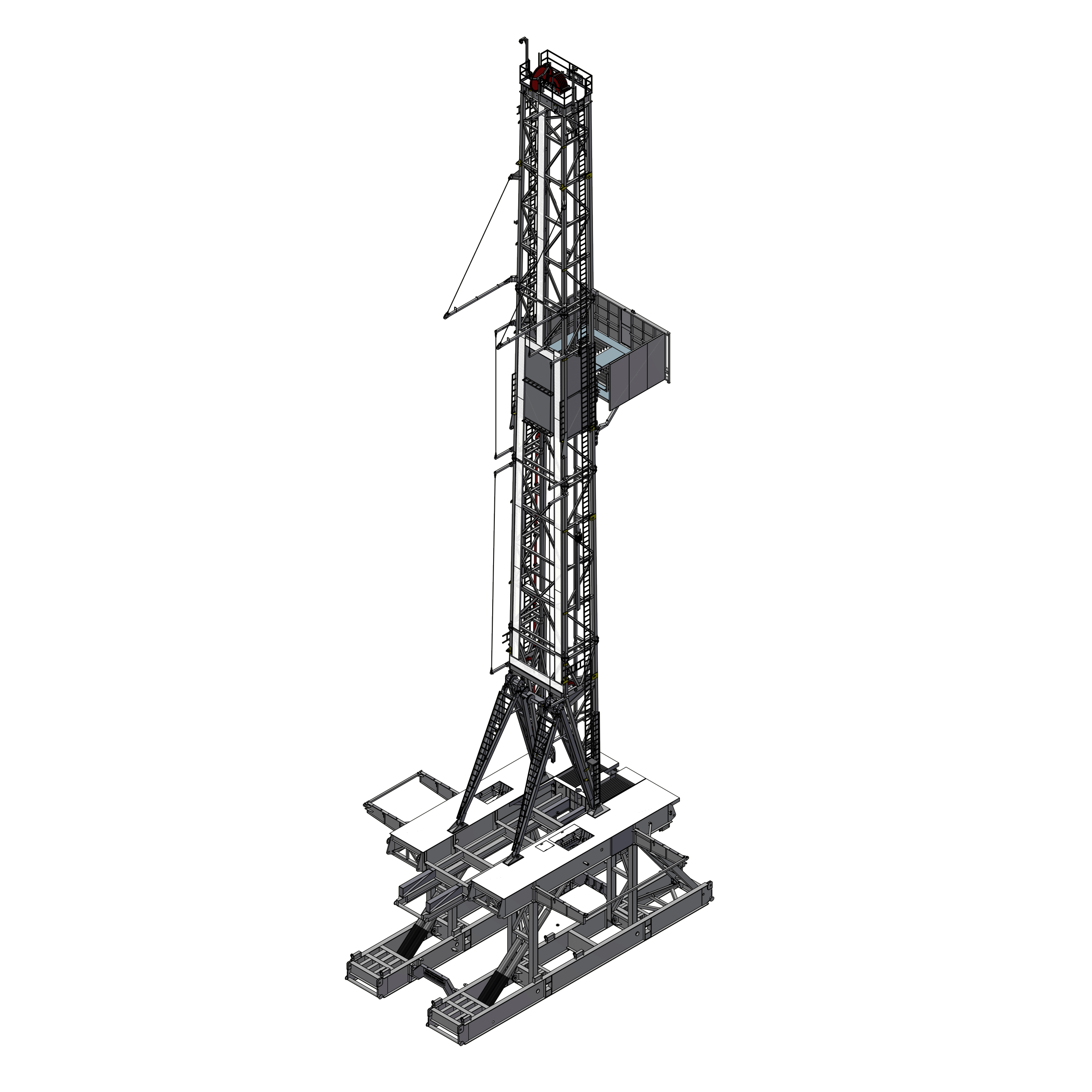

Mast: Hodgson M142-13.5-600TM
142' cantilever triple mast
Maximum static hook load: 600,000 lb (266,880 daN) with 10 lines
Racking capacity (5" pipe): 208 stands × 90'/stand = 18,720 ft (5,706 m) + collar racking
Substructure: Hodgson SSE 25-27-750
25' self-elevating substructure
Casing capacity: 750,000 lb (333,600 daN)
Setback capacity: 600,000 lb (266,880 daN)
Designed to accommodate Columbia moving system pods
For details on this unit, please contact our sales representative through the contact section.
Please click the thumbnail to enlarge.
